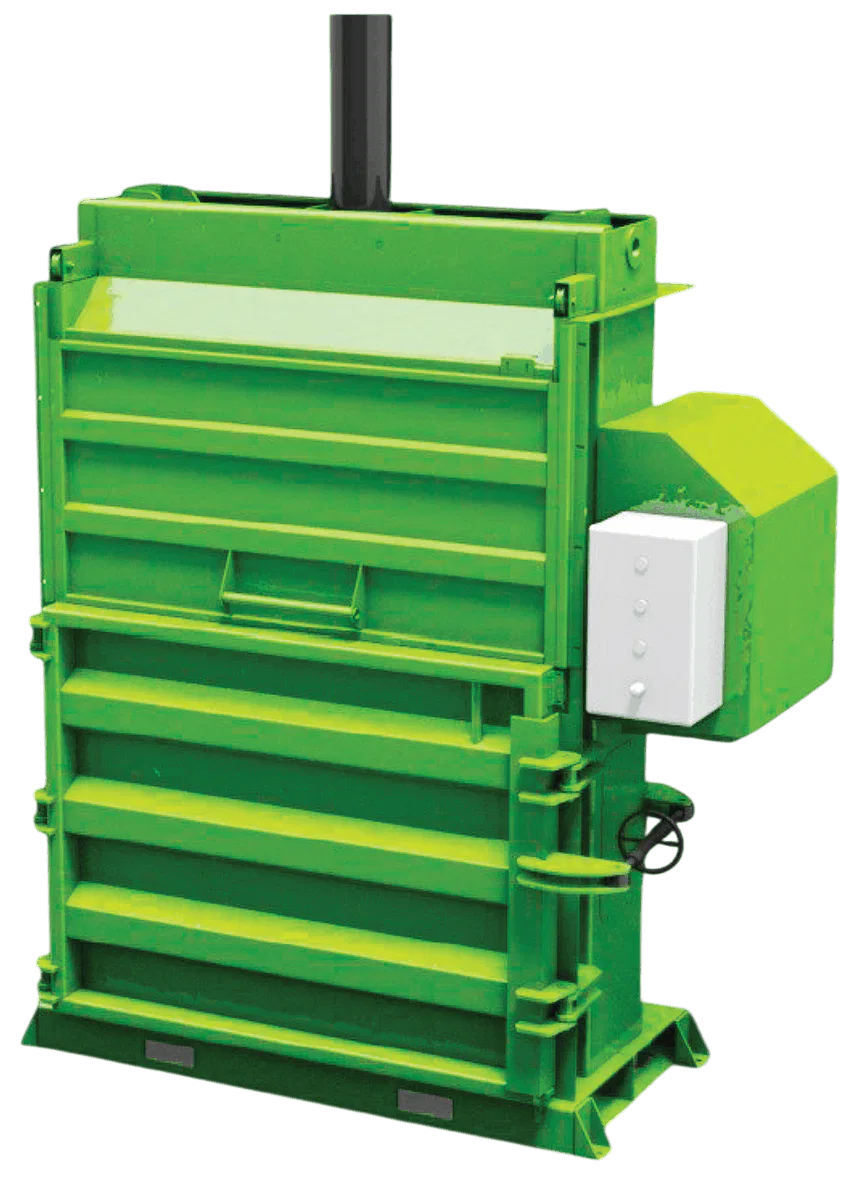

The Spartan 600E is a powerful, 3 phase, vertical baler that produces mill size bales weighing up to 600kg (dependant on material). It is suitable for baling cardboard, plastics and many other materials offering energy savings for users operating more than 5hrs.
| Specification | Value |
|---|---|
| Height | 3660mm |
| Width | 2220mm |
| Depth | 1110mm |
| Loading Aperture | 1500 x 620 mm |
| Machine Weight | 2200kg |
| Bale Weight | 550–600kg |
| Baling Force | 30 Tonnes (295 KN) |
| Bale Dimensions | 1500 x 750 x 1100mm (Bale height adjustable) |
| Cycle Time | 50 Seconds |
| Motor Size | 4kW |
| Mains Power Requirement | 25A, 3PH (Motor Rated) |
The baler is loaded through a vertically opening sliding door, which provides a large opening aperture, without the drawbacks of a hinged door. Once a bale is complete, a powered bale ejection mechanism ejects the bale, providing an easy method of loading onto a pallet. Final bale height is adjustable.
The Spartan 600E is manufactured in the UK and is fully compliant with all applicable safety standards, including BS EN16500, and is UKCA (CE) marked.
