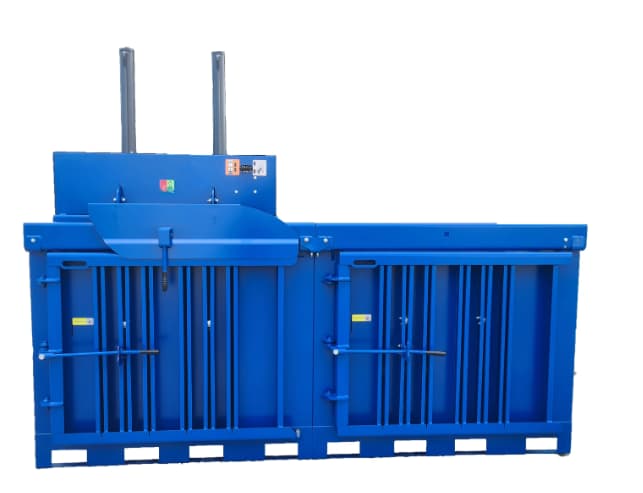

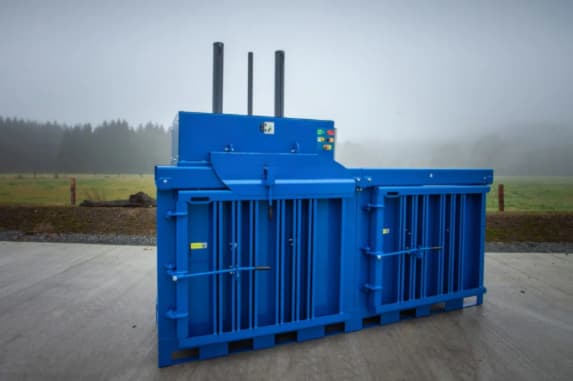

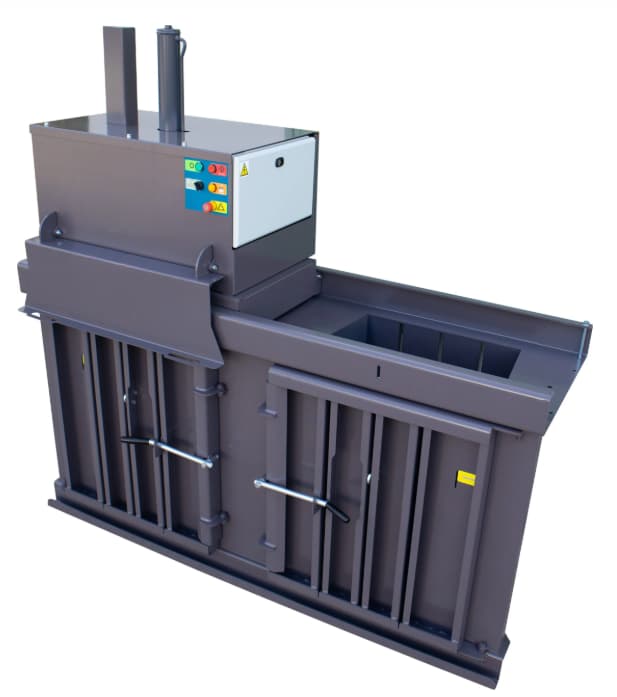

TD200 Multi

The TD200 Multi Baling Press has the option of adding up to five additional chambers creating a powerful multi chamber baler with extended rams.

Specification Details
Colour Options Different colour options available
Power Supply 220–240V, 1 Phase
Breaker 16A C Rated
Motor 2.2kW
Pressing Force 16 Ton
Noise Level 68 Decibels
Cycle Time 34 Seconds

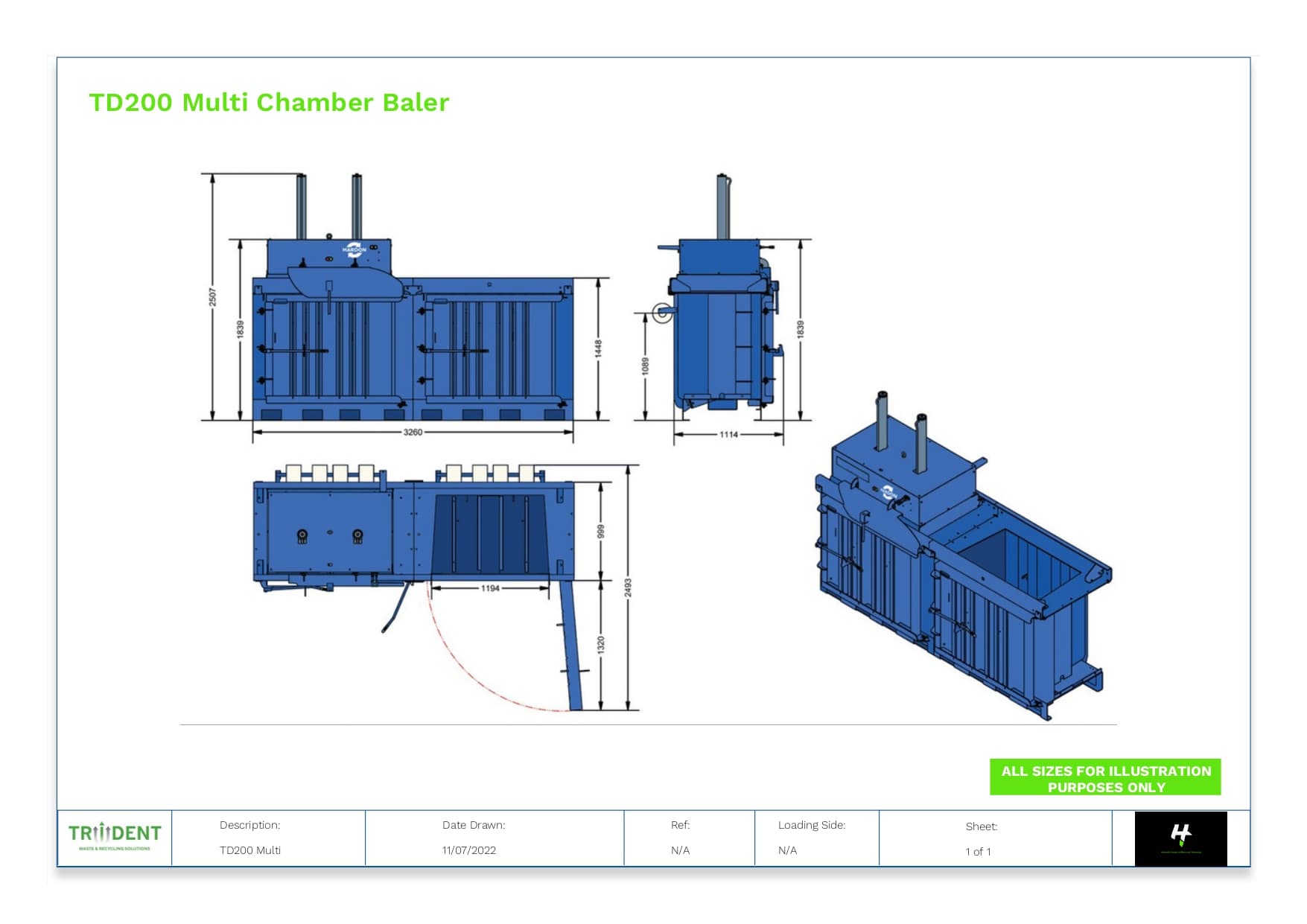

Baler Height 2506mm
Baler Width 3260mm
Baler Depth 1269mm
Baler Weight 1400kg

The TD200 Multi Baling Press has the option of adding up to five additional chambers creating a powerful multi chamber baler with extended rams. Ideal for sites generating two or more recycling streams, it is an incredibly versatile piece of equipment. Businesses often produce more than one recyclable stream at once, this machine is perfect for being able to deal with each stream simultaneously. With multiple chambers, each dealing with a different stream, this means that it can potentially handle high volumes of such as cardboard, paper, plastic film and other waste materials. This adaptable and easy to use machine will increase operational efficiency, saving on labour, space and collection costs.

Features

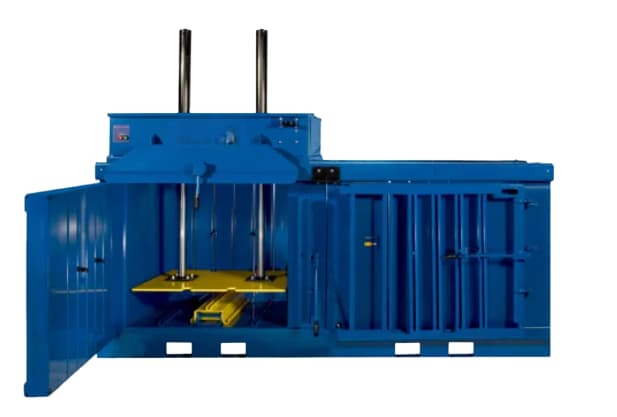

  • Top Loading Chambers
  • Makes a 200kg Bale of Cardboard

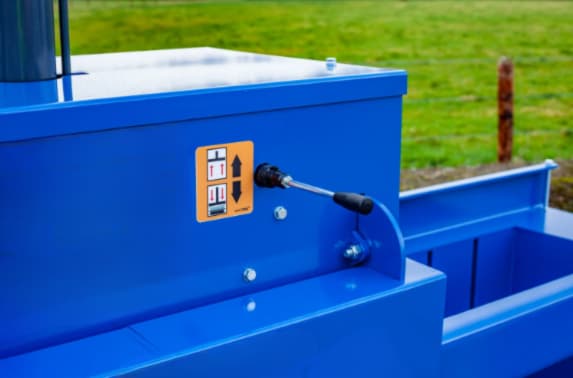

  • Easy to Eject System
  • Retainers to Prevent Spring Back of Material in the Bale Chamber

Optional Extras

  • PLC Panel with Automatic Compaction Cycles and Bale Full Light

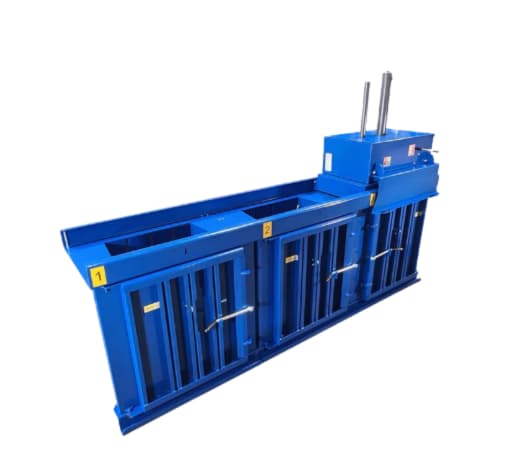

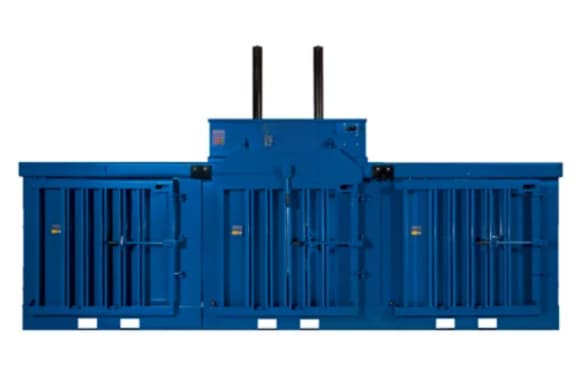

  • Additional Compaction Chambers

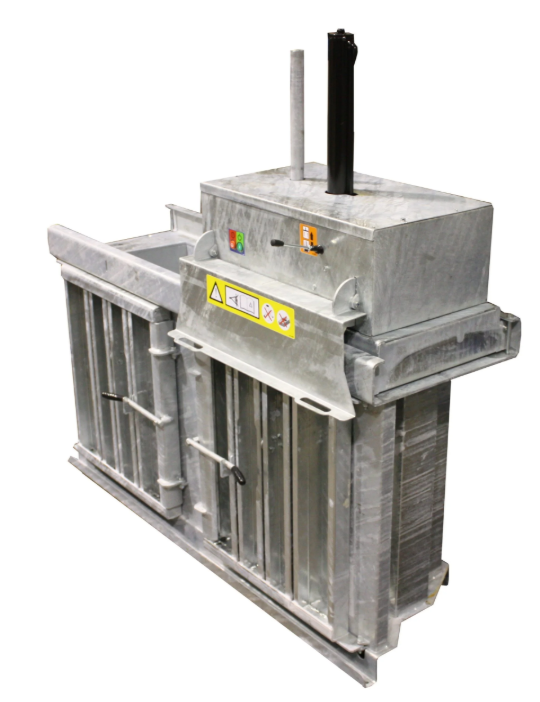

  • Galvanised Finish
